Api Brushless Lab Micromotor Set

Api Brushless Lab Micromotor Set has Good Quality Api Brushless Lab Micromotor with Handpiece Wire.

INDICATION :-

• Widely used in precision grinding, carving and polishing for false teeth, precious stone, jewelry, nails mold handicrafts and so on.

ADVANTAGES :-

• High-Quality Copper.
• Brushless Handpiece Wire.
• Best Quality Ball Bearing Set.
• No Noise Low Vibrator.
• With human engineering design.

TECHNICAL SPECIFICATION :-

NOTE :-

• Do not Run the handpiece without bur.
• When handpiece running, do not try to twist it.
• When changing the bur, make sure the handpiece stop running completely.
• After changing the bur, fasten the chuck completely before operating it again.
• After working do not remove the bur from the handpiece.
• Always chose proper rotating speed as per the above acceptable speed chart.
• Do not always operate the unit at the highest speed.
• Do not overload the unit.
• Before switching off the power, stop the handpiece first.
• Disassembly of the unit is strictly prohibited to avoid serious outcomes.

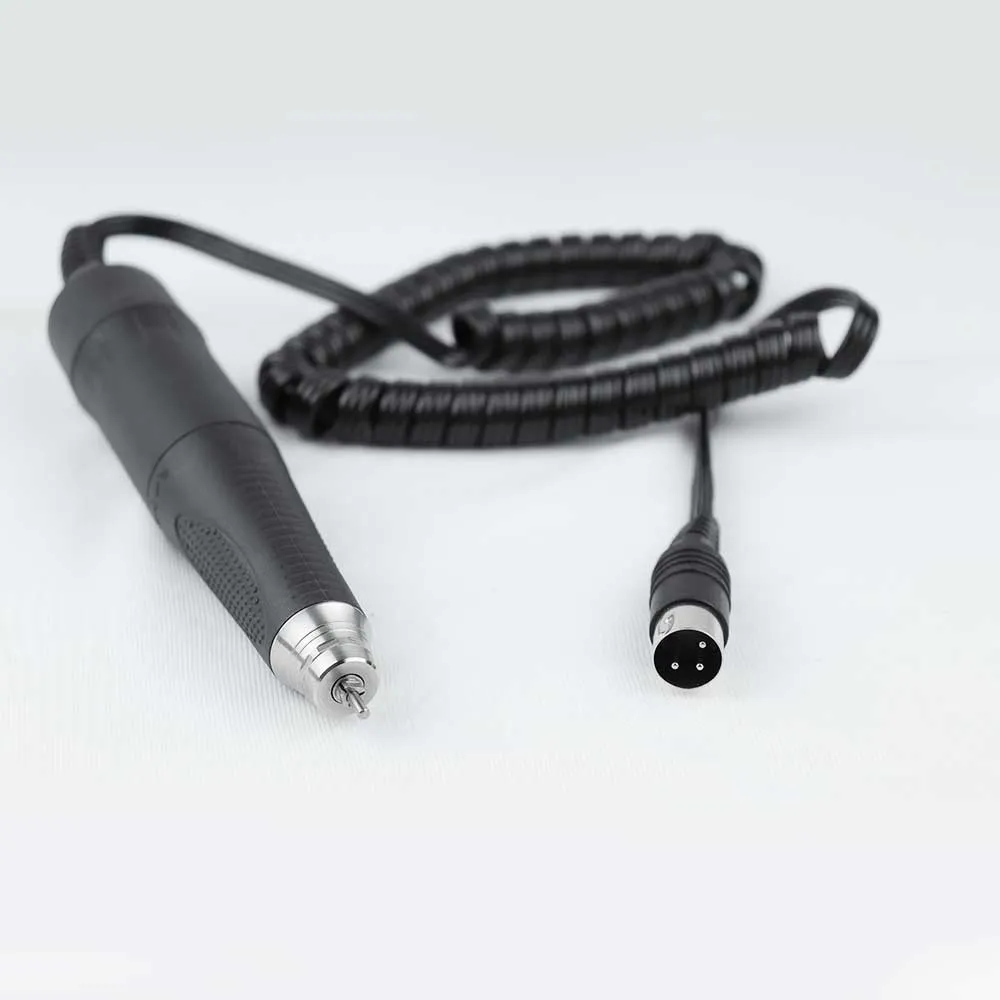

• 1 x Micromotor with Cord

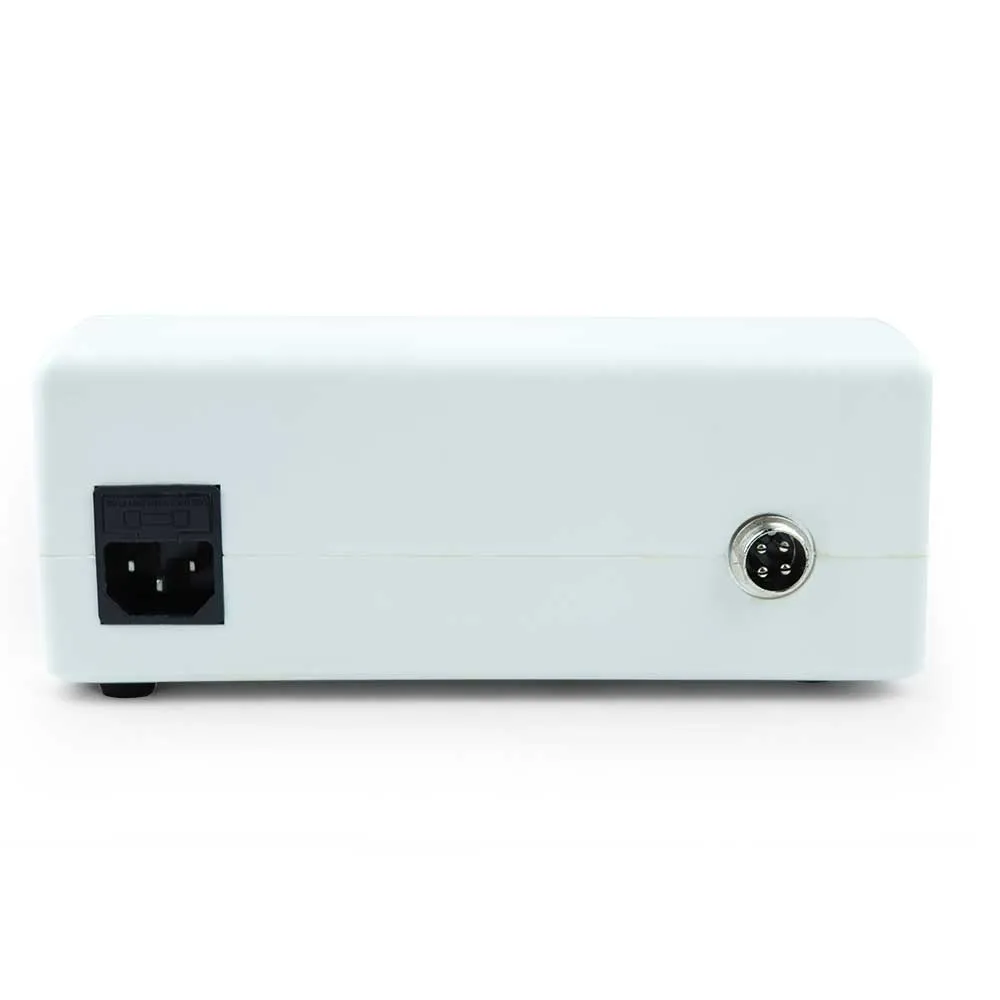

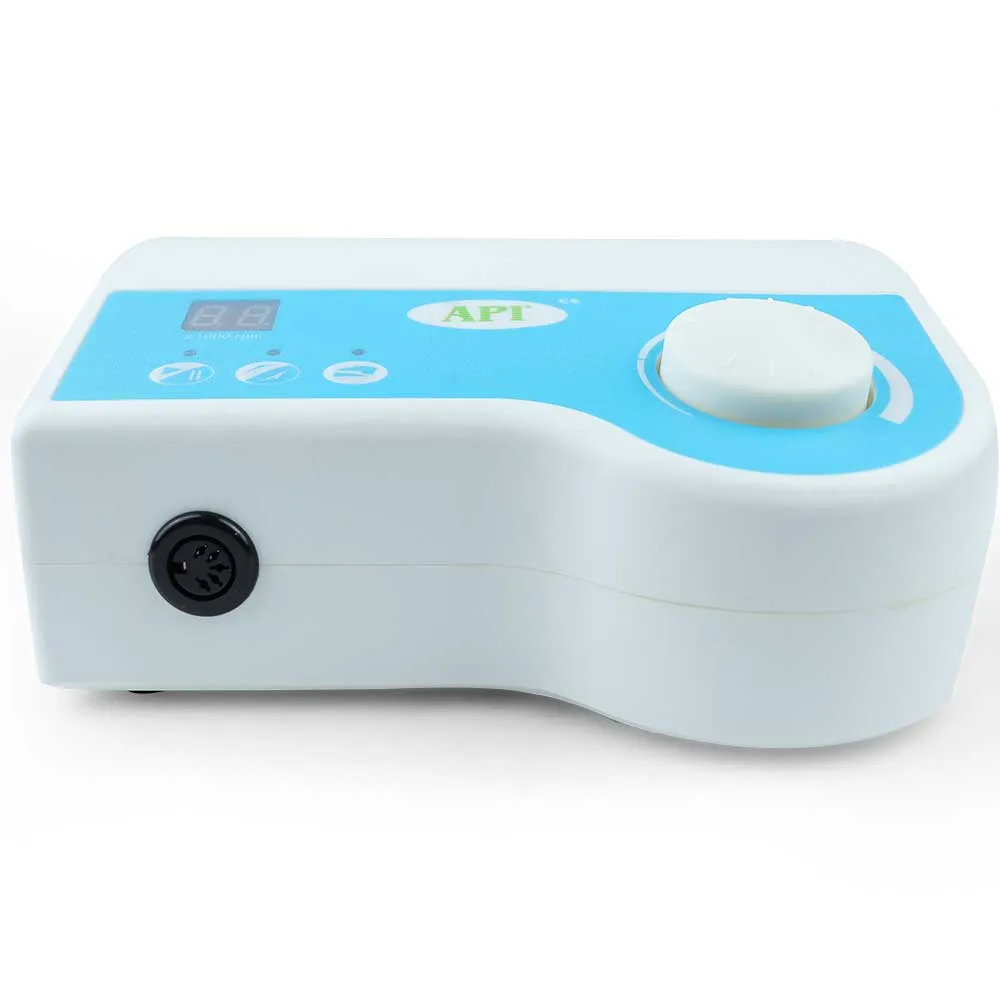

• 1 x Control Box

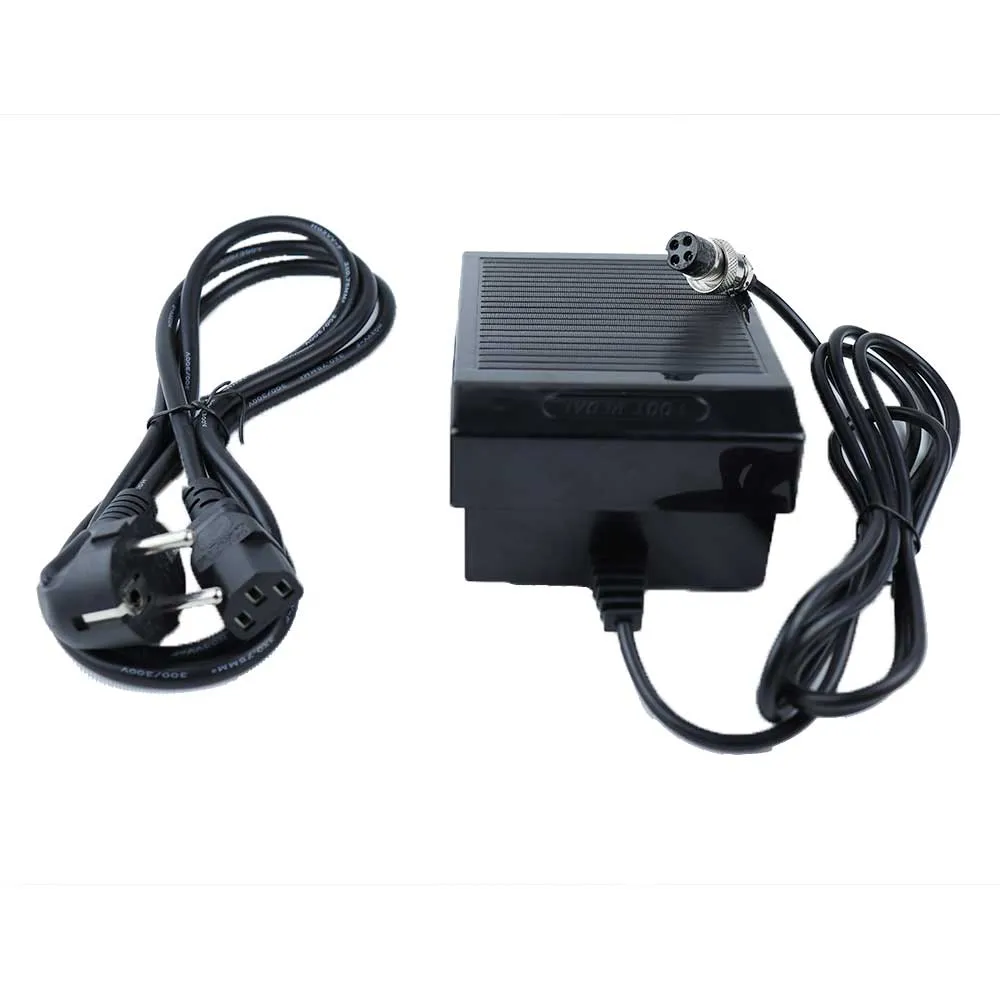

• 1 x Foot Pedal
• 1 x Stand

STEP 1:-

• Connect the handpiece to handpiece port. Connect the foot pedal to foot pedal port if in need.

STEP 2:-

• Plug in and switch on the power of control box power switch .

STEP 3:-

• For hand mode operation,press start/pause start.

STEP 4:-

• For foot mode operation,press foot control and press the foot pedal to run the handpiece.

STEP 5:-

• Set the speed control knob to desired speed.

STEP 6:-

• Select the rotation direction by pressing FWD/REW switch.
