Woodpecker Surgic Touch 3rd Generation Piezo Surgery Unit

Woodpecker Surgic Touch 3rd Generation Piezo Surgery Unit For Ultrasurgery

Micron Cutting

• The vibration amplitude of tip is between 20-100vm. The minimum surgical incision is 3.5mm long, 0.5mm wide, which will help with small operating area and fast postoperative recovery.

Selective Cutting With No Injury to Soft Tissue

• For soft tissues (neural, blood vessels and mucous membranes, etc.), there is no cutting effect, which can protect the vascular nerve of the operation area to a large extent, greatly reducing the risk of injuring soft tissues (neural, vascular, mucosal, etc.).

Cold Cutting Mode

• Ultrasonic technology produces very little heat while cutting. And iced water can quickly cool the tip and ensure the temperature below 38 ° C.
• At the same time, the water spray flushes the wound during operation, bringing no bleeding and enabling clear vision of operation area, which makes it easy to operate.

Features :-

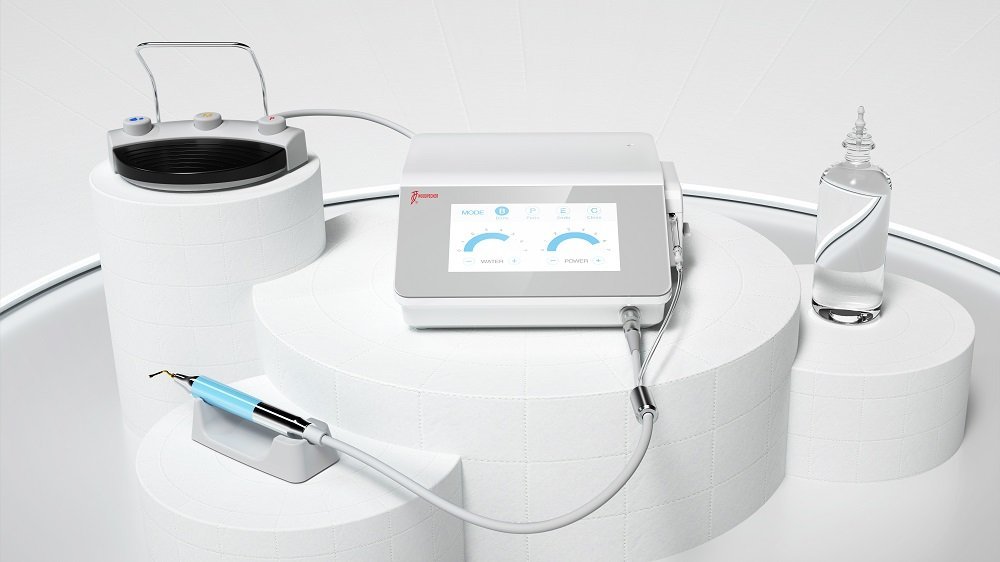

Multi-function Foot Pedal

• Equip device with multi-function foot pedal, which makes it easy to control water flow, working mode, and power, simplifying operation procedures and realizing efficient operation.

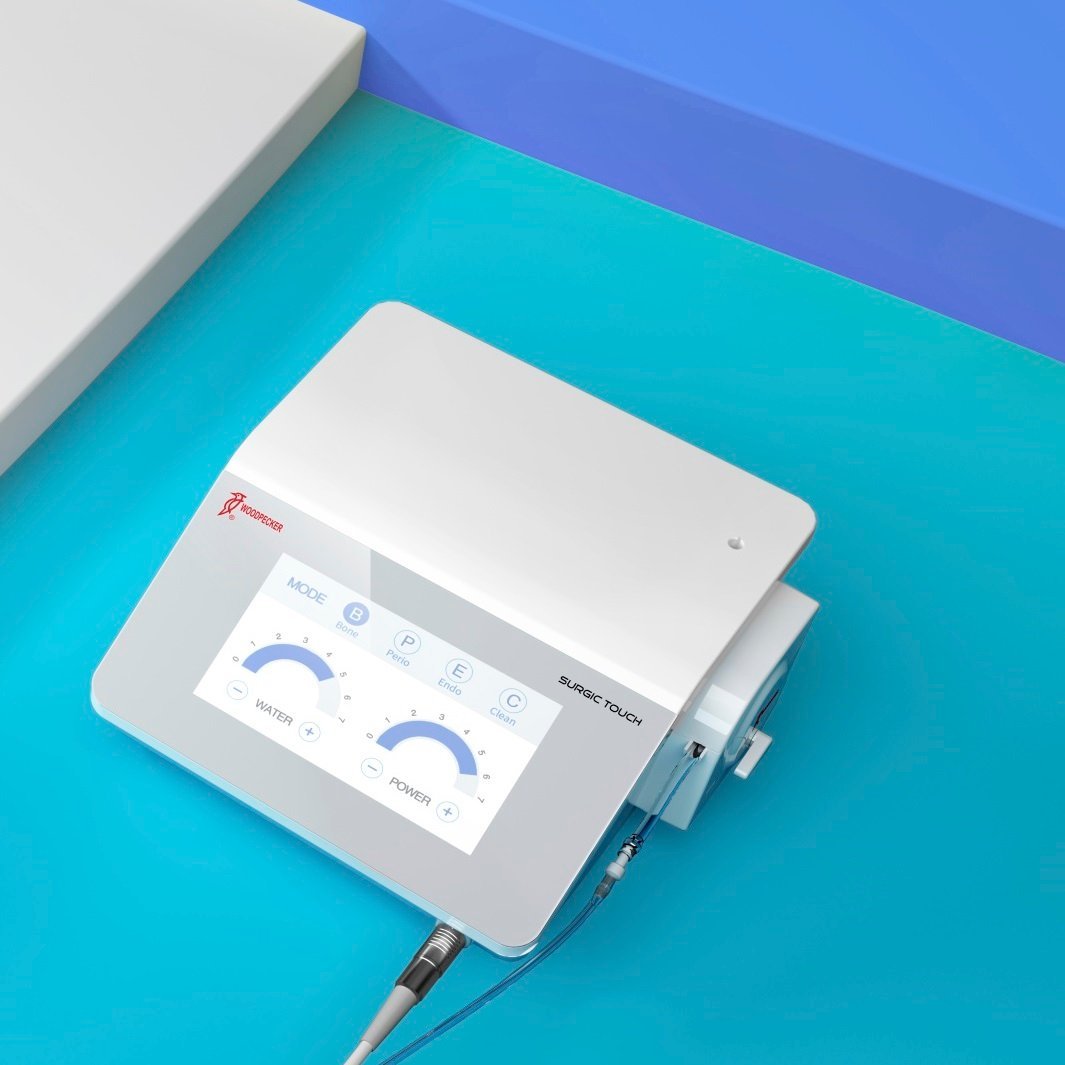

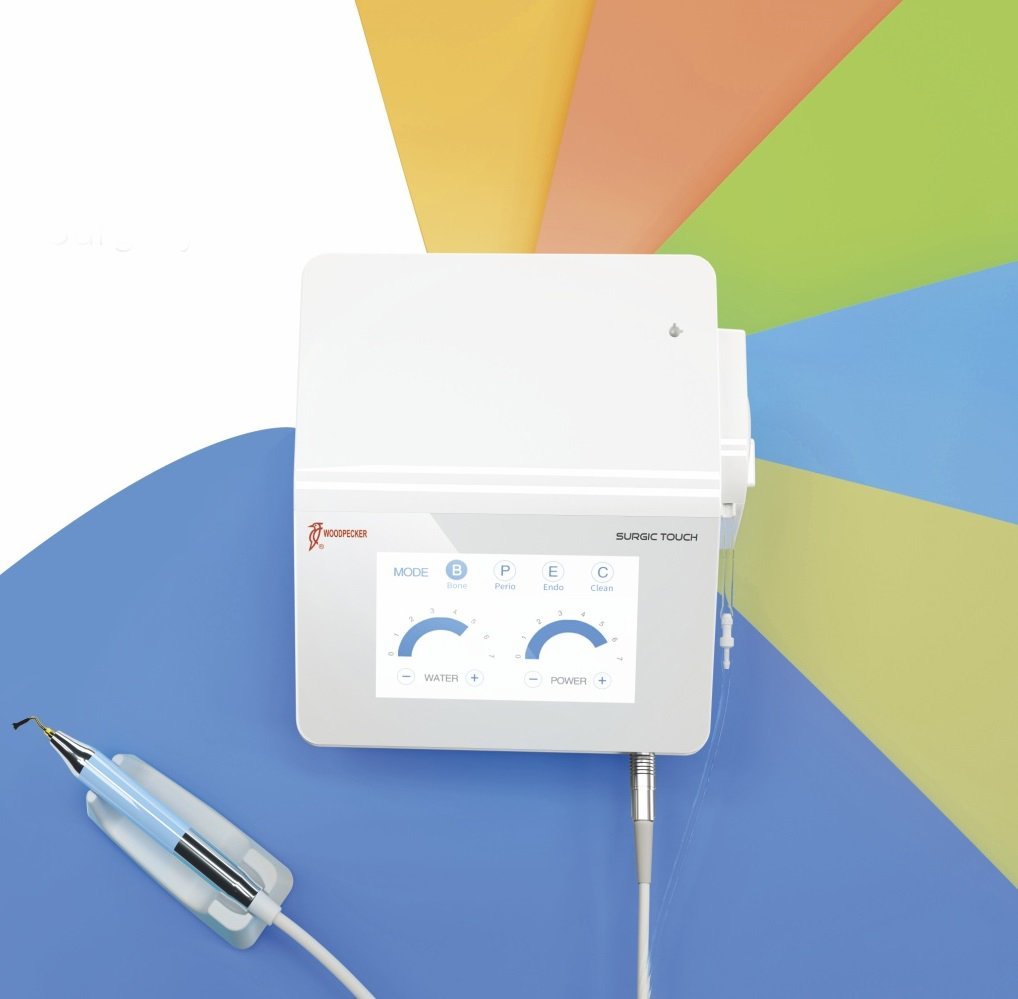

7-Inch Touching Screen

• Abandoning the previous button operation settings, innovatively adopt 7-inch screen. While clearly displaying information, operate directly by tapping the screen.

Tips Kit

• Specially used for tooth extraction, crest splitting, and retropreparation. Adopt gold plating which is wear-resistant and practical with long time of endurance.

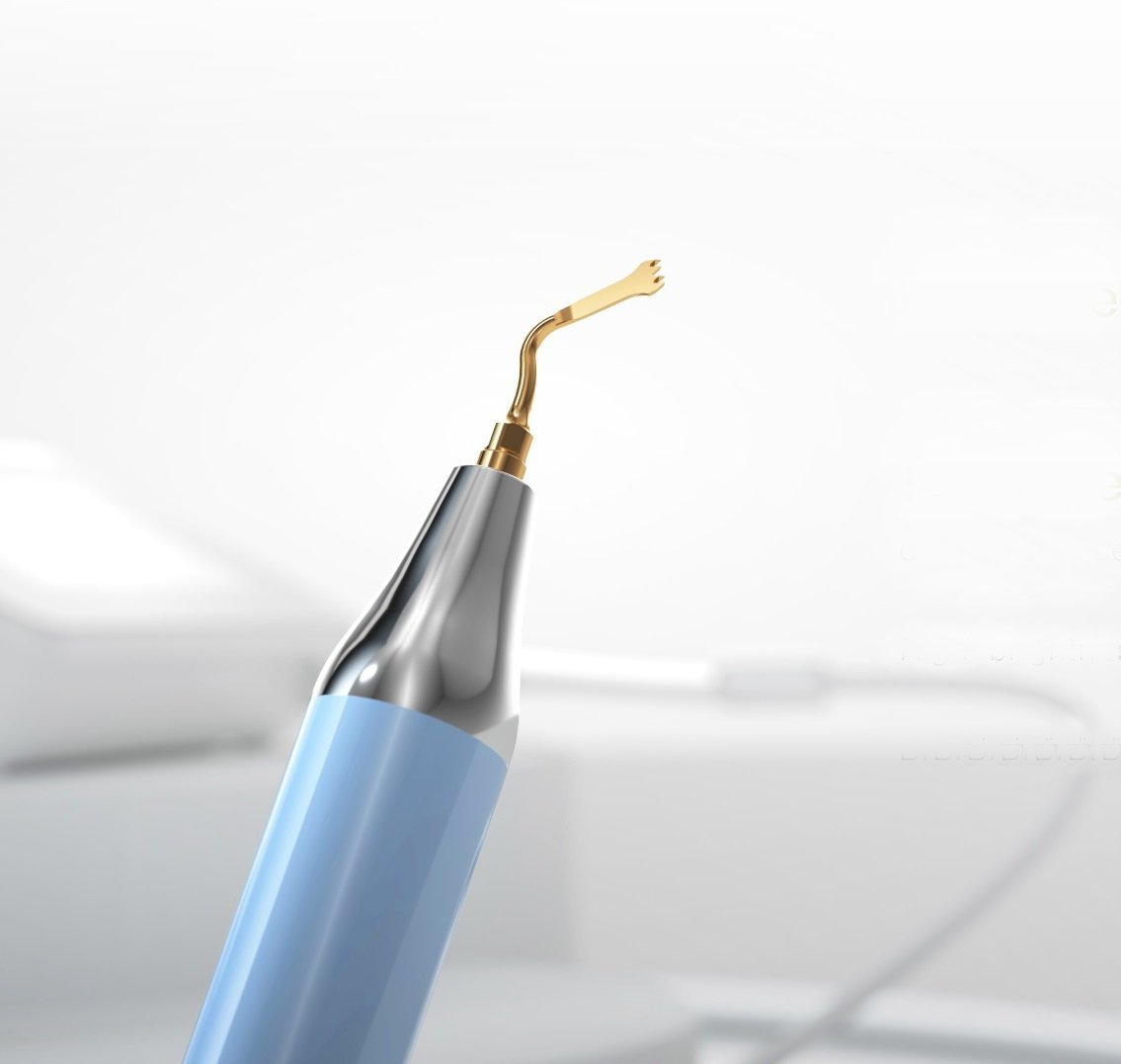

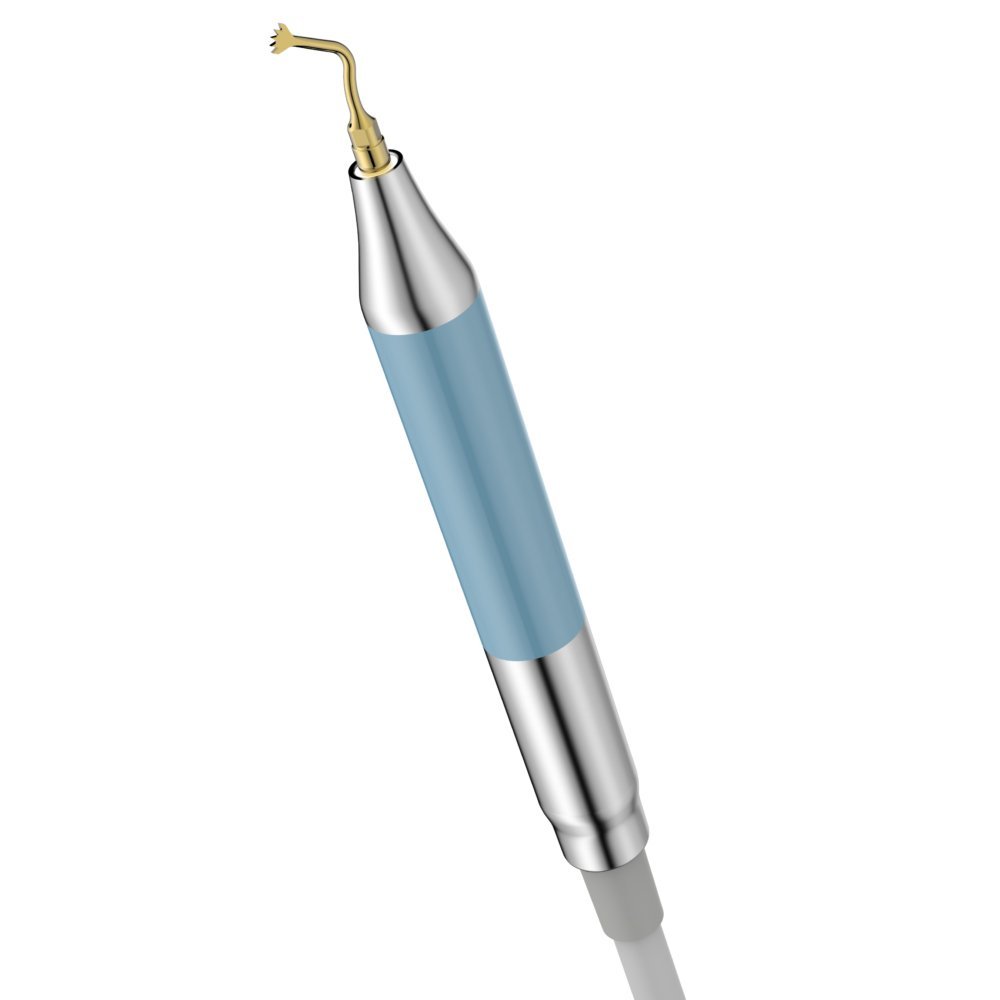

Handpiece Features :-

• High-performance Handpiece
• Optimized handpiece with stronger sealing technology.
• High temperature cooking disinfection causes no loss of performance.
• High-brightness LED brings clearer operating vision.
• Bringing doctor better clinical application experience.

Technical Specifiactions :-

• Dimension：276mm×267mm×110mm
• Intermittent running device : Intermittent running with 10s pause after 60s operation
• Water flow：25~110ml/m
• Mains voltage：100-240V~ 50Hz/60Hz 150VA
• Working frequency：24-36KHZ
• Weight：2.8KG
• Warranty：5 years
